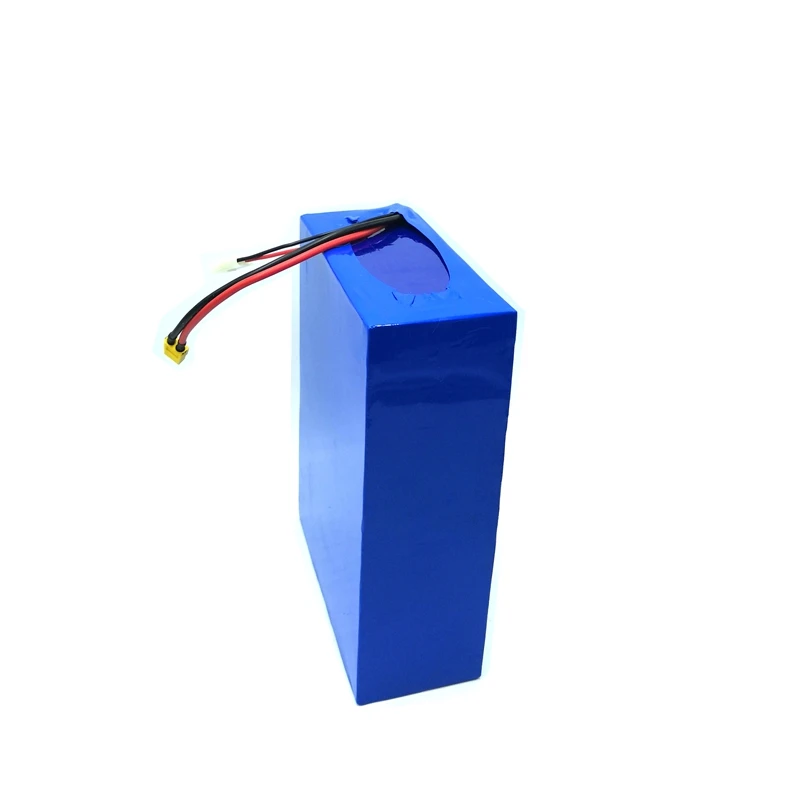

SWORDS FOX 60V 20AH LiFePO4 Battery Pack 2000W Electric bicycle Scooter Batteria 60V 20ah use 20S1P LiFepo4 cells 60V 20AH BikeLIFEPO4Li-ion Battery with PVC Case,BMS and Charger: Parts included: 1. 60V20AhLiFePO4Battery withPVC case 2. Built-in BMS board 3. Charger BatteryModel 60V20Ah NominalCapacity(AH) 20ah NominalVoltage(V) 60V SourceResistance(mΩ about40 CellSpecification 3.2VCell CellCombination 20-series Type LiFePO4 DischargeCutoffVoltage(V) 44+/-1V ChargeCutoffVoltage(V) 75V RatedDischargeCurrent(A) 20A InstantaneousMaximumDischargeCurrent(A) 30A MaximumContinuousDischargeCurrent(A) 60A MaximumContinuousChargeCurrent(A) 10A ChargeMode CC/CV StandardChargeCurrent(A) 6A ChargeTimeunderStandardChargeCurrent 3 FastChargeCurrent(A) 20A ChargeAC 100~240V ChargeTemperatureRange -80 DischargeTemperatureRange -80 BatterySize about 280*210*120mm or customized ChargeingCycles >1800times RecommenderforMotor Less than1000W NetWeight 11kgs Note: The sizecan changed shape according to the requirement BMSModel LiFePO4 BMS System Balance voltage for single cell 3.6V Balance current for single cell 35±5mA Over charge detection voltage 3.75 ± 0.025V Over charge release voltage 3.70 ± 0.025V Over discharge detection voltage 2.2 ± 0.025V Over discharge release voltage 2.6 ± 0.025V Over current detection voltage 150mV Current consumption ≤20μA Over charge detection delay time 0.5S—2S Over discharge detection delay time 10mS—200mS Detection delay time 250uS Release condition Cut load Protection circuitry(MOSFET) ≤20mΩ Charger Model LiFePO4 Smart mode CC / CV Maximum voltage 75 V Output Capacity 5~6 A AC Voltage 110 or 220V Battery have overcharge, over discharge, over current, short circuit, charge equalization of automatic identification and protection circuit Advantages: ·Fast charging Large overcharge tolerance and safe performance ·Self balance ·Simplifying battery management system (BMS) and battery charger ·1500 timescycle life ·High temperature performance Applications: ·Electric Vehicles, such as E-bike, E-scooters, E-cars, E-bus; ·Electric boats, such as trolling fishing boat; ·Robots for industries and military; ·Remote data transfer system; ·Satellite communication station; ·Un-manned submarine; ·Un-manned aircrafts; ·Power tools, such as drilling, cutting and polishing tools; ·Power station for low temperature application, such as -40; Power supplier for Training systems, such as Torpedo Trainer Notice: 1. When the voltage between the two electrodes is over 36V, the safe voltage of human beings, do not contact the positive and negative terminals of battery pack with body. 2.It is strictly forbidden to immerse the battery in water or seawater, keep the battery in a cool and dry surrounding if it stands by. 3. Do not expose in the sun. 4. Do not expose in the rain or snow. 5. Do not use or leave the battery near a heat source as fire or heater. 6. Use the battery charger specifically for that purpose when recharging. 7. Do not reverse the positive and negative terminals. 8. Do not plug in the battery electrodes to an electrical outlet. 9. Do not discard the battery in fire or a heater. 10. Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects. 11. Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc. 12. Do not strike, trample or throw the battery. 13. Do not directly solder the battery and pierce the battery with a nail or other sharp objects. 14.Do not use the battery in a location where static electricity and magnetic field is great, otherwise, the safety devices may be damaged, causing hidden trouble of safety. 15. If the battery gives off strange odor, generates heat, becomes discolored or deformed, or in any way appear abnormal during use, recharging or storage, immediately remove it from the device or battery charger and stop using it. 16. In case the battery terminals are dirty, clean the terminals with a dry cloth before use. Otherwise poor performance may occur due to the poor connection with the instrument. 17. Do not expose to temperature above 60°Cor heater; 18. Do not use the battery pack connected in series or parallel About Us Zone Green PowerCO.,Ltdis a professionalbattery manufacturer in China, provides a full range of primary lithium batteries, Electric bike li-ionbattery pack,rechargeable lithium batteries, Ni-CD, Ni-MH batteries, and battery packs for industrial, commercial, medical and military applications. Zone Green Power'smanufacturing and facilities are ISO9001:2001 and ISO14001:2004 registered. Our products are compliant with CE, RoHS and have passed UN transportation testing. We are committed to total quality control and to achieving the quality level demanded by our customers. Shipping We Ship your orders within2-4 business daysafter the payment cleared as we have almost all items instock. EMS:Item shipped from EMS, reach most of the countries within6 to 15 days. TNT:Item shipped from TNT, reach most of the countries within4 to 7 days Quality We are professional Electric bike batterysupplier on aliexpress, We have perfect production process and all kinds of scientificmanagement tools to control the quality,such as Six Sigma,PFMEA,CP,SPC and so on.The battery is brand new andevery single item you buy from our companyhas been compeletly tested before shipping , after several times of testing , so we can guarantee the quality. Service We are willing to answerany questions about the products no matter Presale or after sale. We care about ourcustomer satisfaction! If you have any question,pls contact us directly or leave us message,we will reply as soon as possible. Refund When you received the item, please check the quality and quantity in time. if there is any problem in 7days,Feedback the reason where it gets wrong to us. we will resolve it asap,If the products still can't work,We will send new replacement or refund once the item is received. Feedback Feedback will be left in a timely manner after feedback has been received. Should there be any problems with your purchase, please do not leave neutral or negative feedback before contacting us for resolution. We strive to make every transaction a positive experience and will do everything possible to correct any problem. Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
