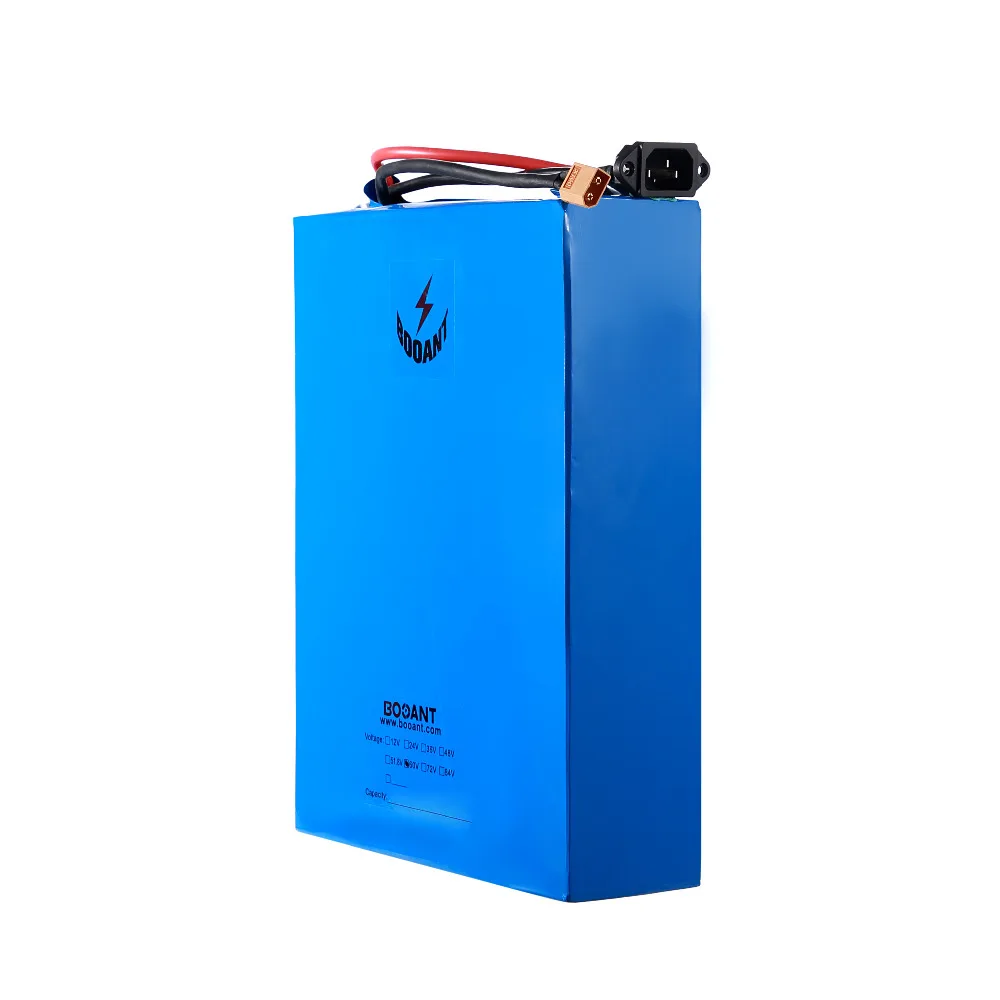

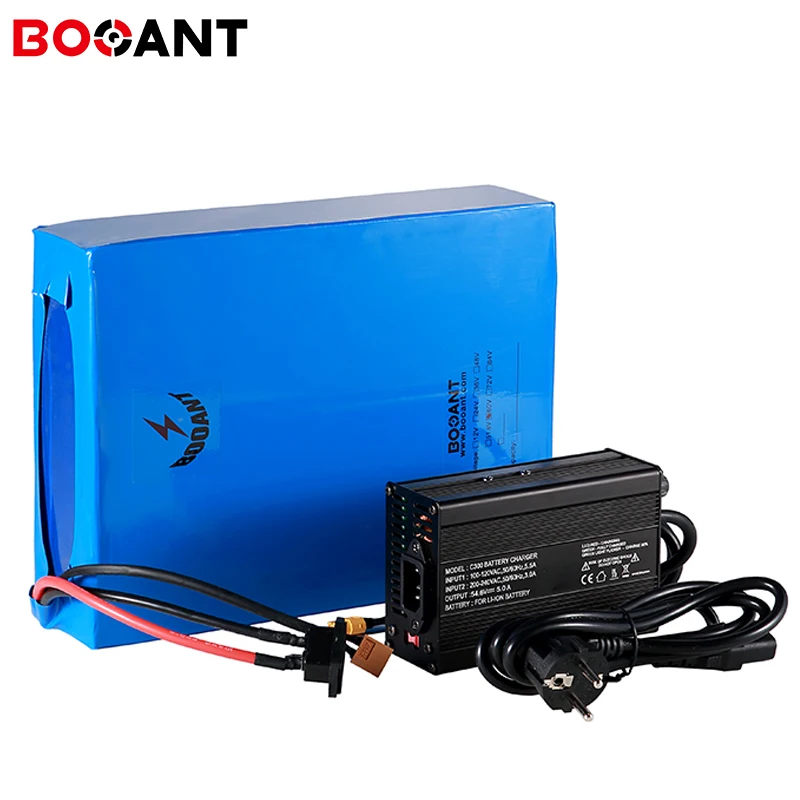

ebike lithium ion battery 3000W 72V 30Ah 60V 52V 1500W 48V 36V 1000W electric bicycle battery for Panasonic 18650 cell +5A Charger AboutBattery Parameters: For Original Panasonic NCR18650PF 2900mAh 3.7V Cell: 20S 10P, 72V 29Ah 3000W(built in 50A BMS), Size: 370x200x70mm(+/-5mm) 16S 10P, 60V 29Ah 2500W(built in 50A BMS), Size: 300x200x70mm(+/-5mm) 14S 10P, 52V 29Ah 2000W(built in 50A BMS), Size: 275x190x70mm(+/-5mm) 13S 10P, 48V 29Ah 1800W(built in 50A BMS), Size: 255x190x70mm(+/-5mm) 10S 10P, 36V 29Ah 1500W(built in 50A BMS), Size: 200x190x70mm(+/-5mm) About Battery Cell: NOTE: Dear friend, because of the different batch or production location of the battery cell, its coding will be different,thank you! Parameter Information List Battery Model 72V 29Ah 3000W Voltage 72V Capacity 29Ah Cell Type For Original Panasonic NCR18650PF 2900mAh 3.7V cell Cell Combination 20 Series with 10 Parallel Charge Way of charge CC/CV Standard charge current 2A Max charge current 5A Charge cut-off voltage 84V Cell overcharge protection voltage 4.2V/CELL Discharge Continuous discharge current 50Amp(Max) Peak discharge current 150Amp Cell overdischarge voltage 3.0V/cell Discharge cut-off voltage 60V BMS (Built-in) 50A Discharge current Safety test No fires ,No explosion Over charge safety test Crush safety test Needling safety test 130 C high temperature safety test Weight(Battery) About 10 kg Size 370x200x70mm(+/-5mm)(can be customized) Fit motor power 100W--3000W(MAX) Working temperature Lowest -20℃ Highest 65℃ Cycle life ≥80% capacity after 800 cycles Charging time 6--6.5 Hours Application E-Bike,E-motorcycle,E-scooter Warranty One year Product Package: 1. Lithium Battery packs with PVC case 2. Built-in BMS (protection board) 3. 84V 5A Charger 4. Power Cable (Supply EU/ UL /AUS/ BS Plug) About Discharge port: Client: We offer these discharge connector as showed on picture.You can choose which one you want,If you have not confirmed in time,we will send the productwhich our main picture showed! About the power cable: Client: We offre these power cable as showed on picture,you can choose which one you Want,if you have not confirmed in time,we will send the power cable that commonly Usedin your country. Product Show: About BMS: Warm Tips:
Wednesday, February 5, 2020
ebike lithium battery 3000W 72V 30Ah 60V 52V 1500W 48V 36V 1000W electric bicycle battery for Panasonic 18650 cell +5A Charger
Winnerjet Refill UltraChrome Pigment ink for Epson 7880 9880 7800 9800 printer suitable for photo
Winnerjet MBK C M Y for ultrachrome pigment ink for Epson Stylus Pro 7450 9450 7400 9400 printing ink
Winnerjet durable 4 colors dye sublimation ink for Epson Stylus Pro 7450 9450 7400 9400 printer ink cartridge
Winnerjet 8 Color Sublimation Ink For Epson stylus pro 4000 on T-shirt Mugs or Polyester
9 color 1000ml pigment ink for Epson P800 P600 4800 3800 3880 3885 P6000 P7000 P8000 P9000 7908 9908 7890 9890 printer
8 Colors Waterproof Chrome K3 Pigment Ink Refill For Epson 7800 9800 7880 9880 Large Format Printer
1000ml/bottle Heat Transfer Sublimation Ink Refill For Epson 4800 4880 Inkjet Printer
WINNERJET DTG Printer Ink 1000ml/bottle Waterproof Pigment Ink Refill For Epson 4800 4880 Printer
DOMSEM 250ML 6 Bottles /lot UV Ink For Epson 1390 L800 1400 1410 1430 1500W R280 R290 R330 L1800 UV LED Printer (BK C M Y White)
DOMSEM 250ML 5 Bottles /Set UV Ink For Epson 1390 L800 1400 1410 1430 For DS A4 A3 UV Printer SGS Certification
1000ml/bottle 8 Colors Sublimation Ink Compatible For Epson 4000 7600 9600 Printer
WINNERJET 1000ml/bottle BK C M Y Water Based Pigment Ink Refill For Epson 7400 9400 7450 9450 Printer
Winnerjet (DTG) Textile ink for Epson stylus pro 1390 1400 1410 1430 printer( C+M+Y+K+2White+Pre-treatment liquid)
Winnerjet 1000ML per bottle WINNERJET 5 colors pigment ink for Canon iPF830/iPF840/iPF850 printer high quality ink
9 color Refillable cartridge with resettable chip and chips resetter for epson surecolor P6000 P7000 P8000 P9000 for europe
Printhead Print Head cleaning clean kit refill tool For HP 932 933 950 951 952 953 954 955 PRO 7740 8210 8218 8710 8715 printer
WINNERJET 1000ML Dye Pigment Sublimation Ink for Epson Stylus Pro 4000 7600 9600 Printer Digital ink Printing
Refill Compatible Pigment Ink for Epson DX5 9800 7800 4800 printer
4 x 1L high quality dye sublimation ink used for Epson printer ink for T1281 T1291 T1271 T1811 T1631 ink cartridge
4 x 1L high quality dye sublimation ink for T0711 - T0714 for D78 D92 D120 DX4000 DX4050 DX4400 DX4450 DX5000 SX100 SX200
Hot Sale 6Liter Sublimation Ink For Epson, dye sublimation Ink, refill Ink for Epson printer ink.
6 x 1 liters, color sublimation refill ink used for Epson stylus photo 1400 R1400 printer.
(6liters/lot) Sublimation ink for EPSON, compatible Stylus Photo R260/R265/R280/R380/RX560/R360/RX580/R585/RX595/RX680
(6liters/lot) Refill Sublimation ink for EPSON Stylus Photo PX650 PX700W PX710 PX800FW PX810FW P50 ect
(6liters/lot) High quality Sublimation ink for EPSON Stylus Photo R265 R360 R285 RX560 RX585 RX685 PX800FW PX700W ect
(6liters/lot) 6x1000ml Sublimation ink for EPSON Stylus Photo R270/R390/RX590/R290/1410/RX610
6x1L 6 color Sublimation ink for EPSON Stylus Photo 1390.
(6liters/lot) Sublimation ink for EPSON Stylus T60
High resolution A4/A3/A2 uv printer ink with 2.5 L specification CMYKW
China Wholesale Eco Solvent Ink DX5 for Epson Stylus 9800 7800 4800 Bulk Ink
Free Shipping By Fedex!Hot sale 6 Color refill inkjet 6x1000ML Refill UV Dye Ink for HP Inkjet Printers:121,122,135,161,178 ect
winnerjet 1000ml inks for Epson Stylus Pro 4800 4880 inks, printer sublimation ink Epson printing inks
6 colors from DOMSEM 250ML 5 Bottles /lot UV Ink For Epson 1390 L800 1400 1410 1430 1500W R280 R290 R330 L1800 UV LED Printer
8 X 1L printer ink high quality dye ink usd for EPSON pro 7800 9800 4800 PRO7800 PRO9800 printer
(6liters/lot) Sublimation ink for EPSON Stylus RX615/R295
Compatible Copier Parts for Oki c110 C130N MC160N Copiers Image Drum Set P N 44250801
For Xerox 7525 7530 7535 7545 7556 Image Drum Unit OPC,For Xerox WC-7525 WC-7530 WC-7535 013R00662 Drum OPC Original Color,10PCS
1X 160000Pages Japan Compatible Drum Unit Replacement for Ricoh Aficio AF MP4000 MP4001G MP5000 MP5001G MP 4000 5000 D009
CE250A 251A 252A 253A Color opc drum 504A CRG323 CRG723 GPR29 for HP CP3525 CM3530 printer spare parts high quality 100pcs/box
For HP M427 M403 M506 M526 527 CF288A 288 266 CF266A opc drum Original color OPC loog life span opc drum 100pcs/box
CE285A Compatible For HP P 1102 1132 1212 1214 1217 85 OEM New OPC Drum Printer Parts for HP 88A 36A 35A 78A 388a 436a 435a 278a
10* Japan OPC Drum for Konica Minolta Bizhub C220 C280 C360 C224 C284 C364 C224e C284e C364e DR311 OPC Drum
C500 OPC Drum Compatible For Konica Minolta Bizhub C5500 C550 C5501 C6500 C6501 C6000 C7000 C70hc 8050 CF5001 Printer DU10-Drum
4X Compatible OPC Drum Replacement for Ricoh Aficio MPC3500 3000 3300 4000 2800 Aficio MP C3002 C5501 MPC 2800 5000 Copier
5* original color for Ricoh Aficio MPC 2000 2500 2800 3000 3300 4000 MPC3002 MPC3500 MPC4500 MPC5000 OPC Drum
1X 2780B003 GPR-32/33 Black Drum Only For Canon IR ADVANCE C7055 C7065 C7260 C7270 C9065 PRO C9075 PRO C9270 PRO C9280 PRO
1X Black OPC Drum For Canon imageRUNNER ADVANCE C7260 C7270 C9065 C9075 C9270 C9280 PRO C7055 C7065 OPC DRUM 2780B003 GPR-32/33
10*Japan 150000Page OPC Drum for Canon iR ADVANCE C5030 C5035 C5045 C5051 C5235 C5240 C5250 IRC5030 IRC5035 GPR30/31 OPC Drum
Type
Lithium Battery
Capacity
21 - 30Ah
Brand Name
BOOANT
Voltage
72V
Battery Type
For Original Panasonic NCR18650PF 2900mAh 3.7V cell
Battery capacity
29Ah
Battery voltage(Normal)
72V
Charger
CC/CV 84v 5A
Peak current(A)
150A
BMS

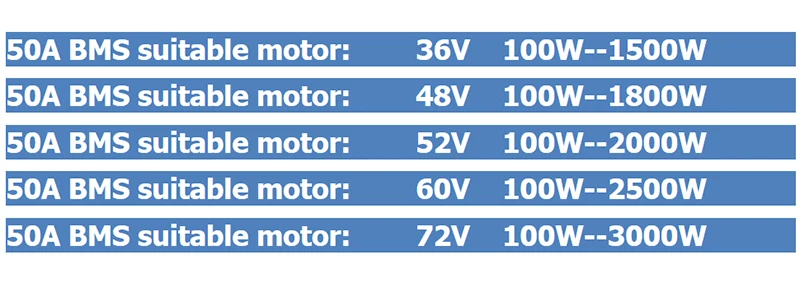

50A supports 100W--3000W Motor
Battery size
370mm*200mm*70mm(+/-5mm) (can be Customized)
Application
E-Bike / E-Scooter / Electric Bicycle
Cell Combination
20 Series with 10 Parallel
MAX continuous discharge current (A)
50A
Cell Quantity (parallel x series)
200pcs
ebike lithium ion battery 3000W 72V 30Ah 60V 52V 1500W 48V 36V 1000W electric bicycle battery for Panasonic 18650 cell +5A Charger AboutBattery Parameters: For Original Panasonic NCR18650PF 2900mAh 3.7V Cell: 20S 10P, 72V 29Ah 3000W(built in 50A BMS), Size: 370x200x70mm(+/-5mm) 16S 10P, 60V 29Ah 2500W(built in 50A BMS), Size: 300x200x70mm(+/-5mm) 14S 10P, 52V 29Ah 2000W(built in 50A BMS), Size: 275x190x70mm(+/-5mm) 13S 10P, 48V 29Ah 1800W(built in 50A BMS), Size: 255x190x70mm(+/-5mm) 10S 10P, 36V 29Ah 1500W(built in 50A BMS), Size: 200x190x70mm(+/-5mm) About Battery Cell: NOTE: Dear friend, because of the different batch or production location of the battery cell, its coding will be different,thank you! Parameter Information List Battery Model 72V 29Ah 3000W Voltage 72V Capacity 29Ah Cell Type For Original Panasonic NCR18650PF 2900mAh 3.7V cell Cell Combination 20 Series with 10 Parallel Charge Way of charge CC/CV Standard charge current 2A Max charge current 5A Charge cut-off voltage 84V Cell overcharge protection voltage 4.2V/CELL Discharge Continuous discharge current 50Amp(Max) Peak discharge current 150Amp Cell overdischarge voltage 3.0V/cell Discharge cut-off voltage 60V BMS (Built-in) 50A Discharge current Safety test No fires ,No explosion Over charge safety test Crush safety test Needling safety test 130 C high temperature safety test Weight(Battery) About 10 kg Size 370x200x70mm(+/-5mm)(can be customized) Fit motor power 100W--3000W(MAX) Working temperature Lowest -20℃ Highest 65℃ Cycle life ≥80% capacity after 800 cycles Charging time 6--6.5 Hours Application E-Bike,E-motorcycle,E-scooter Warranty One year Product Package: 1. Lithium Battery packs with PVC case 2. Built-in BMS (protection board) 3. 84V 5A Charger 4. Power Cable (Supply EU/ UL /AUS/ BS Plug) About Discharge port: Client: We offer these discharge connector as showed on picture.You can choose which one you want,If you have not confirmed in time,we will send the productwhich our main picture showed! About the power cable: Client: We offre these power cable as showed on picture,you can choose which one you Want,if you have not confirmed in time,we will send the power cable that commonly Usedin your country. Product Show: About BMS: Warm Tips:
ebike lithium ion battery 3000W 72V 30Ah 60V 52V 1500W 48V 36V 1000W electric bicycle battery for Panasonic 18650 cell +5A Charger AboutBattery Parameters: For Original Panasonic NCR18650PF 2900mAh 3.7V Cell: 20S 10P, 72V 29Ah 3000W(built in 50A BMS), Size: 370x200x70mm(+/-5mm) 16S 10P, 60V 29Ah 2500W(built in 50A BMS), Size: 300x200x70mm(+/-5mm) 14S 10P, 52V 29Ah 2000W(built in 50A BMS), Size: 275x190x70mm(+/-5mm) 13S 10P, 48V 29Ah 1800W(built in 50A BMS), Size: 255x190x70mm(+/-5mm) 10S 10P, 36V 29Ah 1500W(built in 50A BMS), Size: 200x190x70mm(+/-5mm) About Battery Cell: NOTE: Dear friend, because of the different batch or production location of the battery cell, its coding will be different,thank you! Parameter Information List Battery Model 72V 29Ah 3000W Voltage 72V Capacity 29Ah Cell Type For Original Panasonic NCR18650PF 2900mAh 3.7V cell Cell Combination 20 Series with 10 Parallel Charge Way of charge CC/CV Standard charge current 2A Max charge current 5A Charge cut-off voltage 84V Cell overcharge protection voltage 4.2V/CELL Discharge Continuous discharge current 50Amp(Max) Peak discharge current 150Amp Cell overdischarge voltage 3.0V/cell Discharge cut-off voltage 60V BMS (Built-in) 50A Discharge current Safety test No fires ,No explosion Over charge safety test Crush safety test Needling safety test 130 C high temperature safety test Weight(Battery) About 10 kg Size 370x200x70mm(+/-5mm)(can be customized) Fit motor power 100W--3000W(MAX) Working temperature Lowest -20℃ Highest 65℃ Cycle life ≥80% capacity after 800 cycles Charging time 6--6.5 Hours Application E-Bike,E-motorcycle,E-scooter Warranty One year Product Package: 1. Lithium Battery packs with PVC case 2. Built-in BMS (protection board) 3. 84V 5A Charger 4. Power Cable (Supply EU/ UL /AUS/ BS Plug) About Discharge port: Client: We offer these discharge connector as showed on picture.You can choose which one you want,If you have not confirmed in time,we will send the productwhich our main picture showed! About the power cable: Client: We offre these power cable as showed on picture,you can choose which one you Want,if you have not confirmed in time,we will send the power cable that commonly Usedin your country. Product Show: About BMS: Warm Tips:
